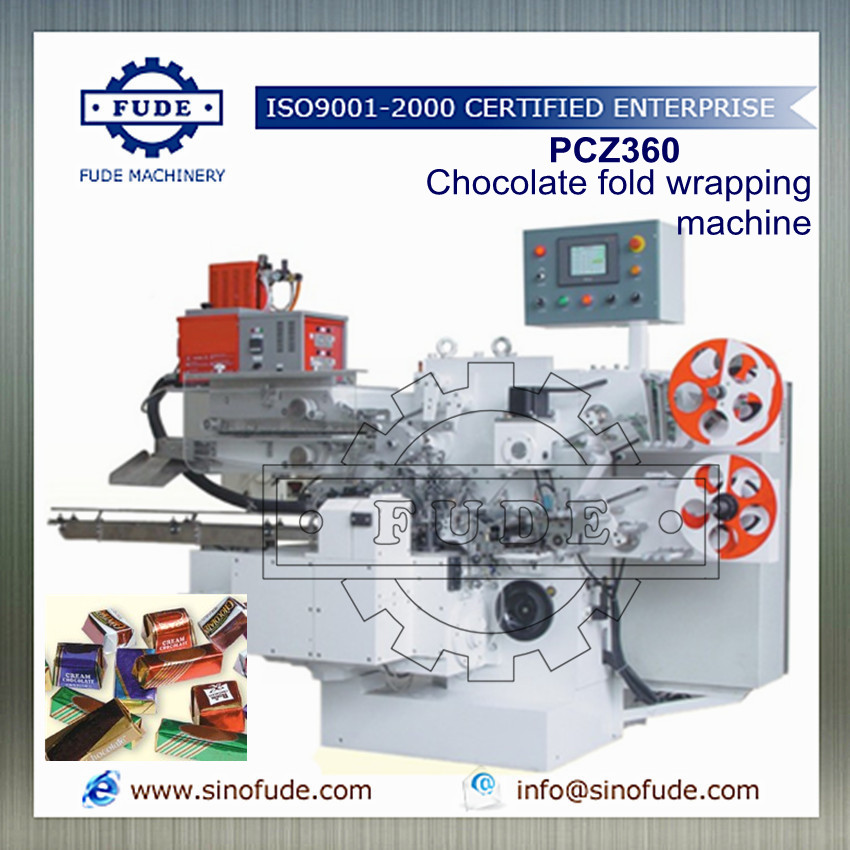

PCZ360 Chocolate fold wrapping machine

PCZ360 Chocolate fold wrapping machine
Product name : PCZ360 Chocolate fold wrapping machine
Model : PCZ360
Details :

 PCZ360 Chocolate fold wrapping machine

This machine can wrap with single or backed aluminum.The special outlet outlet group guarantees the perfect seal of the aluminum. Even when using the not particularly plastic type.It can be set up for both random and horizontal outlets and can reach 360 actual wraps per minute depending on the shape of the chocolate and the wrapping material used. Has a color mark tracing system.,so the wrapping is more perfect.

PCZ360 Chocolate fold wrapping machine is composed of a stiff structure that can be separated into blocks,by a product feeding belt and by a disc positioning the products in front of the arrival of the packaging paper. The package comes from two coils, where paper is developed thanks to a particular roller system,and is fed to the meeting point with the product, where other groups package it. An outlet belt provides for the removal of the finished product.All operating elements are connected to the actuating mechanisms located the structure ,that are adequately lubrified and connected each other by means of belts and gears,then connected to the main motor.

Technical Specifications

On this particular wrapping a series of  holders has been mounted controlled by geats to transfer motion and cams for the movement of the folders .The latter mainly act on the bottom of the product and guarantee a perfect lasting seal to the wrap.The seal can also be reinforced by using a special adhesive-group to be applies on horizontal outlet.

Aligner for chocolates:

Designed to position and align in one row chocolates of various shapes,receiving them deposited at random on a conveying them to ba wrapping machine (speed:600 pieces/min).

The aligner is composed of various,belts and shaped guids.The first belt on which the articles ,with each pitch ,a certain quality of articles onto the subsequent belt.The pitch length and frequency may be adjusted to suit the product. A second motor-powered belt on the last accelerating belt directs the positioned and aligned products toward the connection belt to the wrapping machine.


Wapping speed           360 pieces per minutes based on the different wrapping material.

Electrical Power          3 Ø   380VAC+N±10% 50Hz

Power                   5.4kw

Compressed air            0.6MPa

Dimensions               wrapping part 2700*1400*1700mm

Weight                  approx 1100kg
